產品規格
| 型號名稱 | 額定功率 | 輸入 電壓 / 頻率 |
輸出 電壓 / 電流 |
恆流範圍 | File |
|---|---|---|---|---|---|
| P-L0602425U01 | 60W | 90～264 Vac 47～63Hz |
24V ±5% / 2.5A | 14～24V | 下載 |
| P-L01802475U01 | 180W | 90～264 Vac 47～63Hz |
24V ±5% / 7.5A |

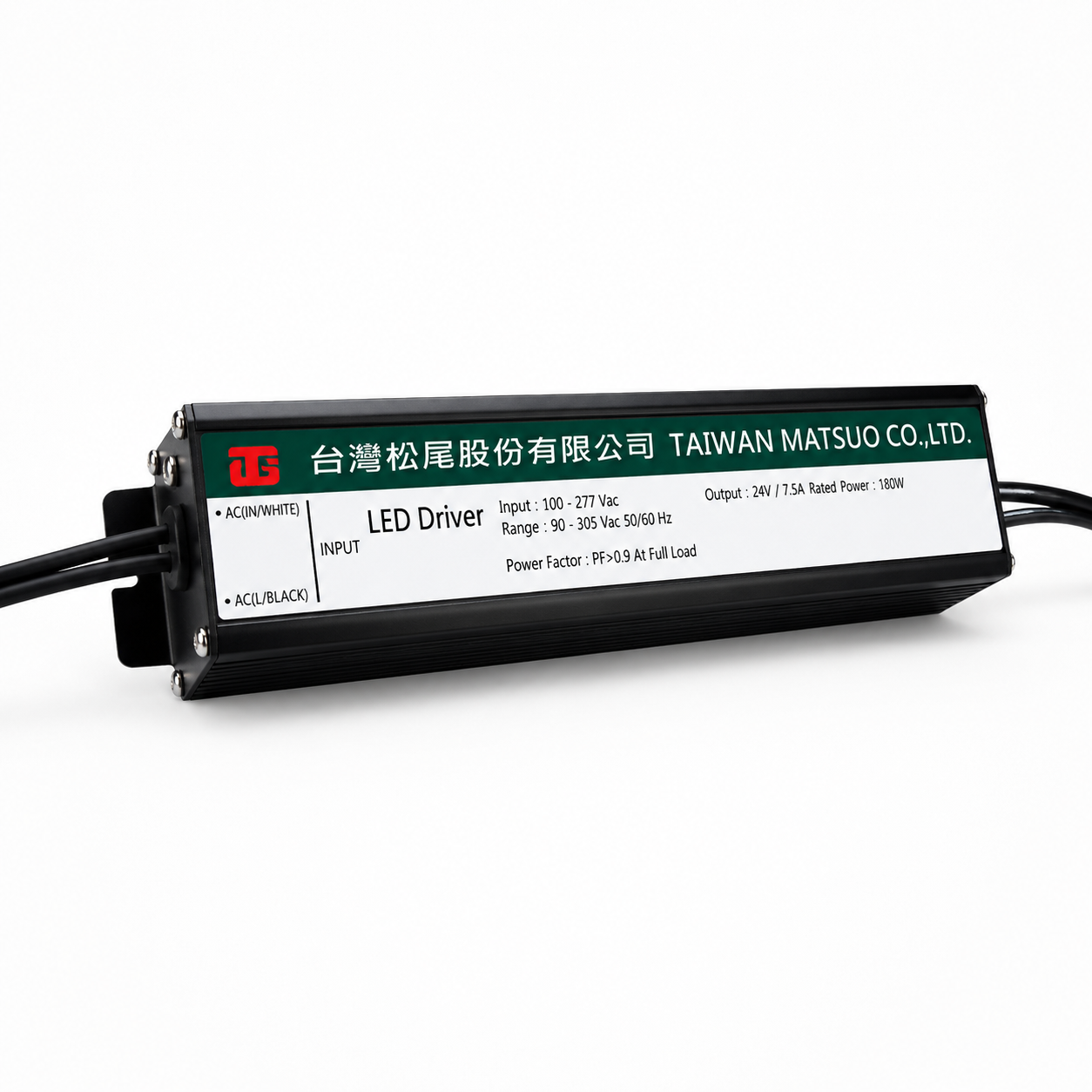

LED DRIVER
Constant Current + ConstantVoltage 60W/180W 3 in 1 Dimming LED Driver
- Built-in PFC Function: up to PF 0.99@ 110Vac at Full Load
- Wide input range 100 ~ 240Vac
- No load power consumption < 1W
- 3 in 1 Dimming(0~10Vdc or 10 PWM or Resistance)
- Protection functions : OVP / SCP / OCP / OTP
